Most of the hot air in the hot air circulation vacuum drying equipment circulates inside the box, which has high thermal efficiency and saves energy. By utilizing forced ventilation, the box is equipped with adjustable air distribution plates, ensuring even drying of materials. The heat source can be steam, hot water, electricity, or far-infrared, with a wide range of options. The whole machine has low noise and balanced operation. Temperature self-control, easy installation and maintenance. Widely applicable and capable of drying various materials, it is a universal drying equipment.
1. Heating sources include steam, electricity, far-infrared, and electric steam for users to choose from;
2. Operating temperature: Steam heating at 50-140oC, with a maximum of 150oC;
3. Electricity usage and far-infrared temperature range from 50 to 350oC;
4. Equipped with automatic control system and computer control system for users to choose from;
5. Common steam pressure is 0.02-0.8Mpa (0.2-8kg/m2);
6. Equipped with electric heating, 15KW according to Type I calculation, practical 5-8kw/h;
7. Special requirements shall be specified at the time of ordering;
8. Non standard oven price negotiable;
9. If the operating temperature is greater than 140oC or less than 60oC, it should be specified when ordering;
10. Our factory has uniform sizes for drying cars and plates, which can be interchanged;
11. Baking tray size: 460 × 640 × 45 (mm).
Suitable for heating, curing, drying, and dehydration of materials and products in industries such as pharmaceuticals, chemicals, food, agricultural and sideline products, aquatic products, light industry, and heavy industry. Such as raw materials, medicinal herbs, traditional Chinese medicine decoction pieces, extracts, powders, granules, granules, water pills, packaging bottles, pigments and dyes, dehydrated vegetables, dried fruits and vegetables, sausages, plastic resins, electrical components, baking paints, etc.
|
|

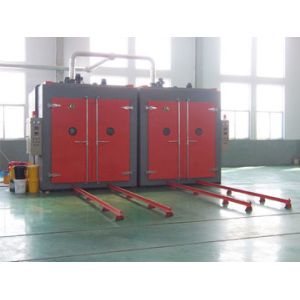

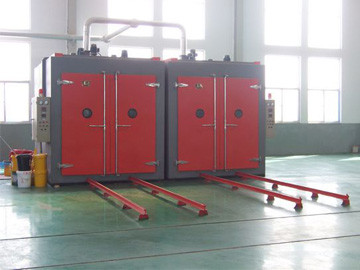

hot air circulation vacuum drying Images
|
